Bale Grapple

The Bale Grapple sets a new standard in bale handling, employing an A-synchronous grip and adaptable jaws for secure and efficient manipulation of bales. Engineered with the highest safety measures, including a fully enclosed base drive system, it eliminates operational risks. Built from durable, wear-resistant steel, it withstands tough conditions, offering a lightweight design that doesn't compromise on power. Ideal for farmers, this tool guarantees easy and reliable manipulation of bales, backed by a 3-year warranty and designed with environmental considerations in mind.

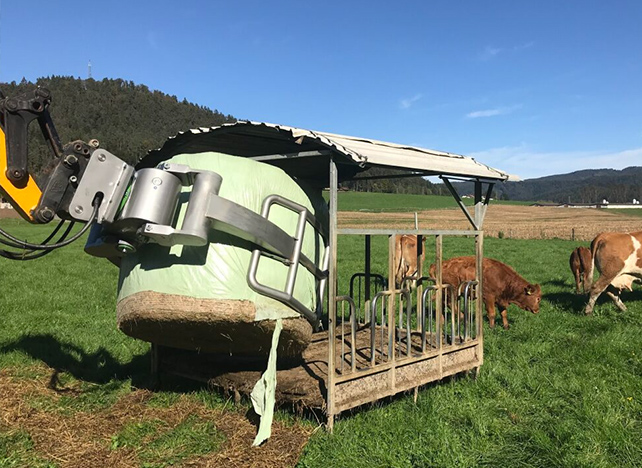

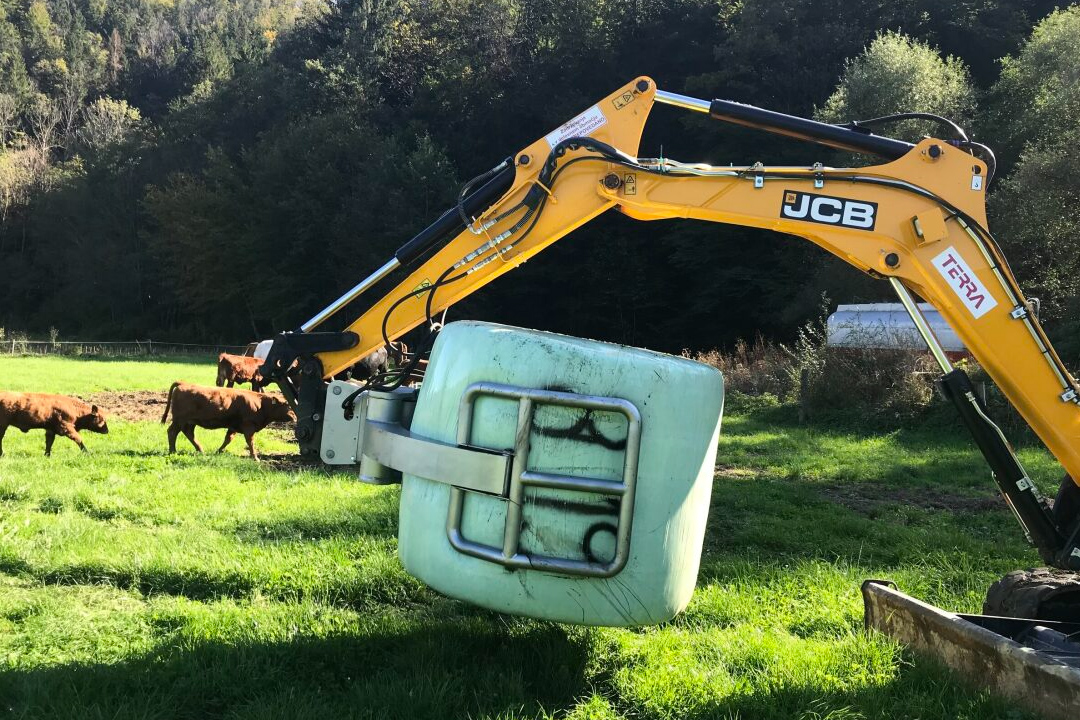

Modularis Drive Bale Grapple on JCB Excavator – Efficient attachment for handling and transporting bales with a JCB excavator.

The Most Reliable Grip with the Bale Grapple

Tool functions

Smart Modular Concept

The Bale Grapple can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. Our smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

More about Modular Concept

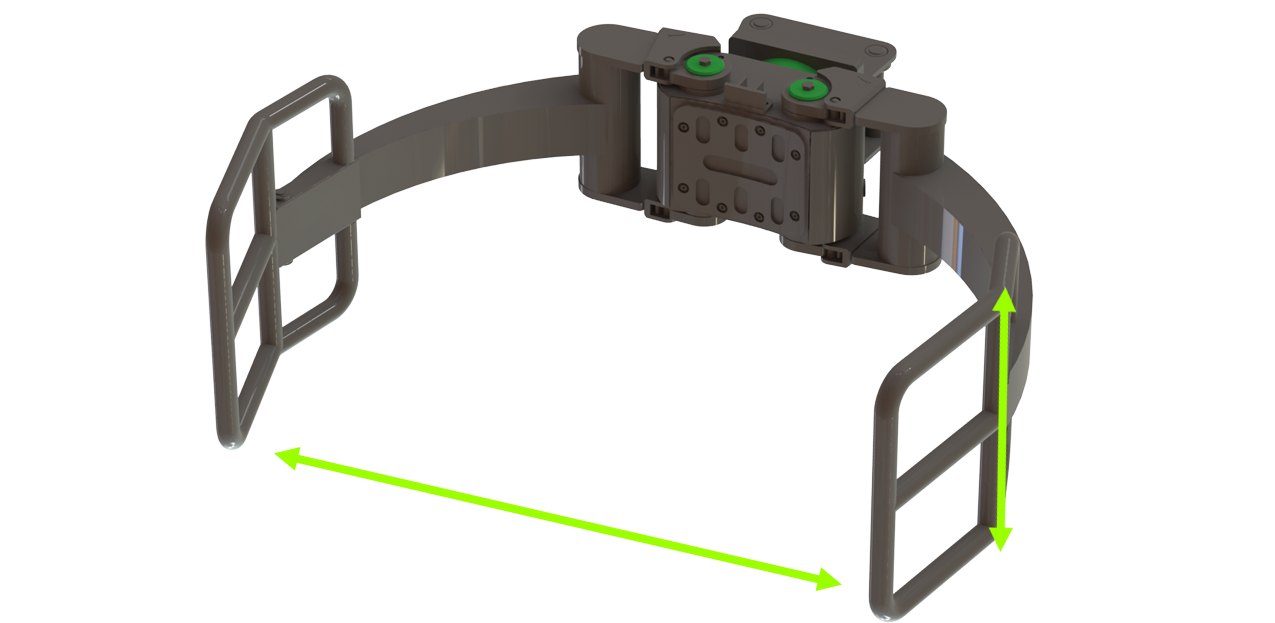

Specifications

Machine Operating Weight:
3-6 t

Max Bale Diameter:
1600 mm / 62,99 in

Max opening (A):
1800 mm / 70,87 in

Width (B):
750 mm / 29,53 in

Arms Weight:
180 kg / 397 lbs

Total Grapple weight:*
355 kg / 783 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
5-9 t

Max Bale Diameter:
1800 mm / 70,87 in

Max opening (A):
2000 mm / 78,74 in

Width (B):
750 mm / 29,53 in

Arms Weight:
200 kg / 441 lbs

Total Grapple weight:*
435 kg / 959 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
8-14 t

Max Bale Diameter:
1800 mm / 70,87 in

Max opening (A):
2000 mm / 78,74 in

Width (B):
750 mm / 29,53 in

Arms Weight:
230 kg / 507 lbs

Total Grapple weight:*
490 kg / 1080 lbs

*Total Grapple Weight value does not include the connection plate.
