Biomass Grapple

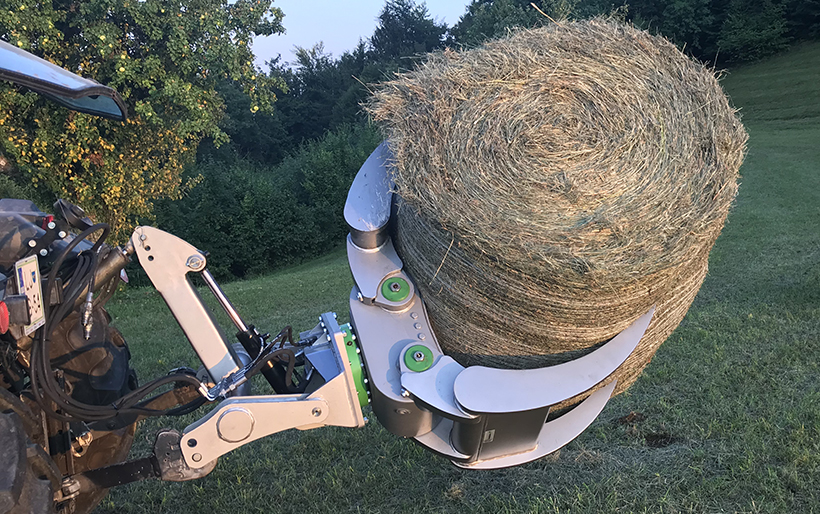

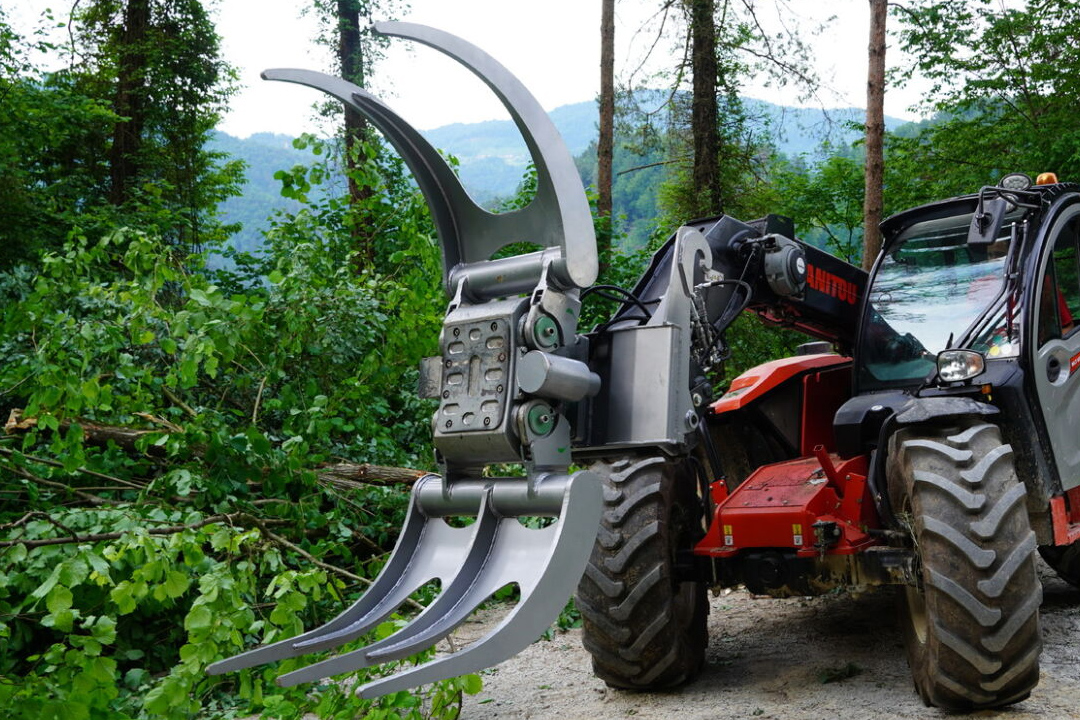

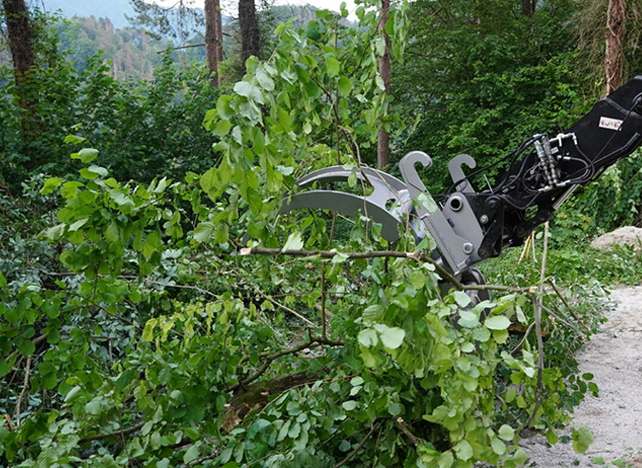

The Biomass Grapple with A-synchronous grip and precision-engineered jaws allows safe handling of biomass, including silage bales and branches. Its design, incorporating wear-resistant steel such as Hardox, ensures durability and a lighter, stronger grip. It is optimised for biomass handling efficiency and promises ease of use with a fully enclosed base drive that ensures safe operation. Backed by a 3-year warranty, this tool is a reliable tool for professionals, reducing environmental impact and increasing operational efficiency.

The Most Reliable Grip with the Biomass Grapple

Tool functions

Smart Modular Concept

The Biomass Grapple can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. Our smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

More about Modular Concept

Specifications

Machine Operating Weight:
3-6 t

Max opening (A):
1500 mm / 59.06 in

Width (B):
700 mm / 27.56 in

Max Bale Diameter:
280 mm / 11.02 in

Height:*
950 mm / 37.40 in

Closing force:
16 kN / 3597 lbf

Arms Weight:
170 kg / 375 lbs

Total Grapple weight:*

345 kg / 761 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
5-9 t

Max opening (A):
1700 mm / 66,93 in

Width (B):
800 mm / 31,50 in

Max Bale Diameter:
340 mm / 13,30 in

Height:
1100 mm / 43,31 in

Closing force:
29 kN / 6519 lbf

Arms Weight:
230 kg / 507 lbs

Total Grapple weight:*
465 kg / 1025 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
8-14 t

Max opening (A):
1980 mm / 77,95 in

Width (B):
900 mm / 35,43 in

Max Bale Diameter:
400 mm / 15,75 in

Height:
1350 mm / 53,15 in

Closing force:
31 kN / 6969 lbf

Arms Weight:
280 kg / 617 lbs

Total Grapple weight:*
540 kg / 1190 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
10-15 t

Max opening (A):
2100 mm / 82,68 in

Width (B):
1000 mm / 39,37 in

Max Bale Diameter:
400 mm / 15,75 in

Height:
1450 mm / 57,09 in

Closing force:
36 kN / 8093 lbf

Arms Weight:
370 kg / 816 lbs

Total Grapple weight:*
715 kg / 1577 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
15-20 t

Max opening (A):
2300 mm / 90,55 in

Width (B):
1100 mm / 43,31 in

Max Bale Diameter:
500 mm / 19,69 in

Height:
1640 mm / 64,57 in

Closing force:
46 kN / 10341 lbf

Arms Weight:
540 kg / 1190 lbs

Total Grapple weight:*
1015 kg / 2237 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
19-22 t

Max opening (A):
2650 mm / 104,33 in

Width (B):
1200 mm / 47,24 in

Max Bale Diameter:
600 mm / 23,62 in

Height:
1850 mm / 72,83 in

Closing force:
55 kN / 12364 lbf

Arms Weight:
730 kg / 1609 lbs

Total Grapple weight:*
1430 kg / 3152 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
21-29 t

Max opening (A):
2700 mm / 106,30 in

Width (B):
1300 mm / 51,18 in

Max Bale Diameter:
600 mm / 23,62 in

Height:
1900 mm / 74,80 in

Closing force:
75 kN / 16861 lbf

Arms Weight:
790 kg / 1742 lbs

Total Grapple weight:*
2190 kg / 4828 lbs

*Height & Total Grapple Weight values do not include the connection plate.
