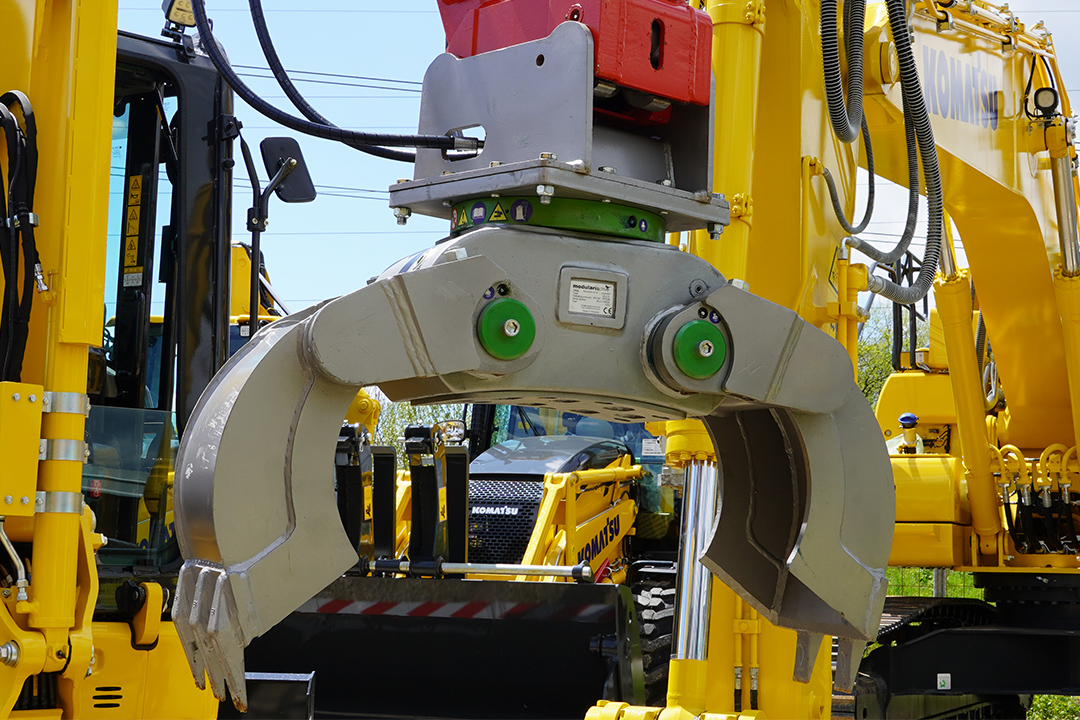

Digging Grapple

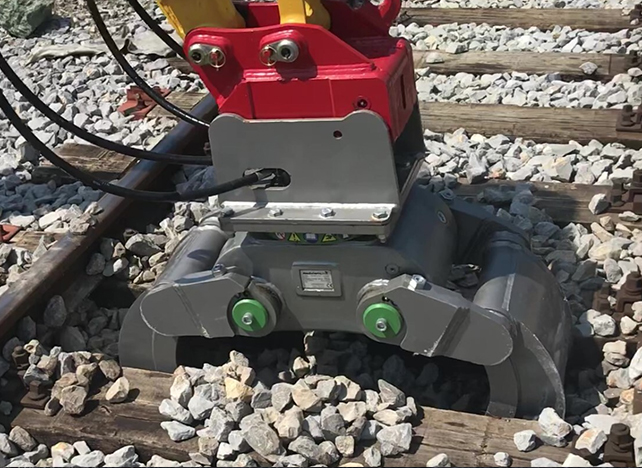

Introducing the Digging Grapple, tailored for efficient digging and cleaning of narrow canals with unmatched safety and durability. It features a patented A-synchronous grip and precision-engineered jaws for maximum safety, alongside a fully enclosed drive for effortless operation and injury prevention. The grapple’s balanced design enhances gripping power while reducing weight, ensuring peak performance. Supported by a 3-year warranty and designed with a closed housing to lessen environmental impact, this tool is essential for precise and safe excavation tasks.

The Most Reliable Grip with the Digging Grapple

Tool functions

Smart Modular Concept

The Digging Grapple can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. Our smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

More about Modular Concept

Specifications

Machine Operating Weight:
3-6 t

Volume:
45 l / 0,06 cy

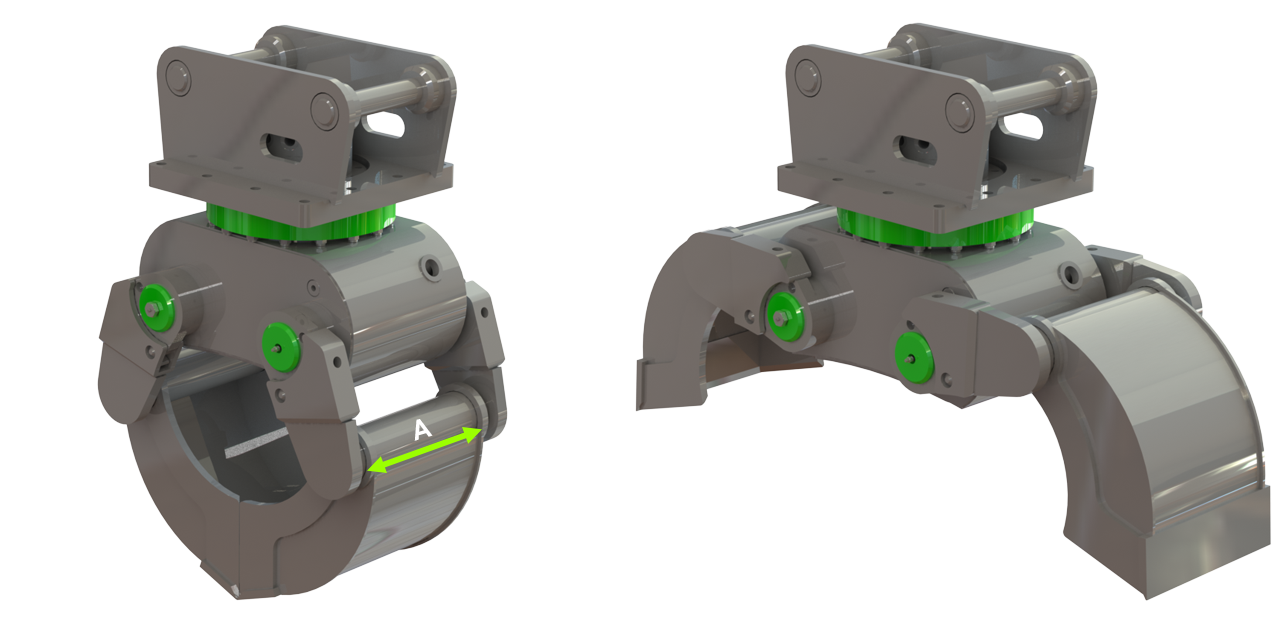

Width (A):
250 mm / 9,8 in

Arms Weight:
95 kg / 210 lbs

Total Grapple weight:*
270 kg / 595 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
3-6 t

Volume:
55 l / 0,07 cy

Width (A):
300 mm / 11,8 in

Arms Weight:
100 kg / 220 lbs

Total Grapple weight:*
275 kg / 606 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
3-6 t

Volume:
65 l / 0,09 cy

Width (A):
350 mm / 13,8 in

Arms Weight:
105 kg / 232 lbs

Total Grapple weight:*
280 kg / 617 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
5-9 t

Volume:
60 l / 0,08 cy

Width (A):
250 mm / 9.8 in

Arms Weight:
133 kg / 293 lbs

Total Grapple weight:*
368 kg / 811 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
5-9 t

Volume:
72 l / 0,09 cy

Width (A):
300 mm / 11.8 in

Arms Weight:
140 kg / 309 lbs

Total Grapple weight:*
375 kg / 827 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
5-9 t

Volume:
85 l / 0,11 cy

Width (A):
350 mm / 13.8 in

Arms Weight:
147 kg / 324 lbs

Total Grapple weight:*
382 kg / 842 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
8-14 t

Volume:
95 l / 0,12 cy

Width (A):
300 mm / 11.8 in

Arms Weight:
170 kg / 375 lbs

Total Grapple weight:*
430 kg / 948 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
8-14 t

Volume:
110 l / 0,14 cy

Width (A):
350 mm / 13.8 in

Arms Weight:
177 kg / 390 lbs

Total Grapple weight:*
437 kg / 963 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
8-14 t

Volume:
125 l / 0,16 cy

Width (A):
400 mm / 15.7 in

Arms Weight:
185 kg / 408 lbs

Total Grapple weight:*
445 kg / 981 lbs

*Total Grapple Weight value does not include the connection plate.
