Hydraulic Concrete Pulverizer

Unlock unparalleled efficiency in your demolition and recycling projects with the Modularis Hydraulic Concrete Pulverizer. This robust tool is expertly designed for seamless crushing of reinforced concrete and cutting of light steel structures. The Modularis Hydraulic Concrete Pulverizer significantly enhances work efficiency with its rapid concrete crushing capabilities, powerful force, and fast closing cycles. The 360-degree rotation feature offers exceptional usability and safe handling, allowing precise positioning of the tool.

Constructed from durable, wear-resistant materials, the pulverizer ensures longevity even under the most demanding conditions, now backed by a 1-year warranty. Maintenance is straightforward and swift, thanks to a quick-change system for teeth and protective plates.

Maximize Efficiency with Modularis Drive Hydraulic Concrete Pulverizer

We offer customization options based on the specific needs of your project, ensuring optimal performance. The correct choice of Modularis Hydraulic Concrete Pulverizer model, with its ideal geometry of attachment, machine size, and tool distance from the mounting point, reduces execution time and fuel consumption by up to 30%, thus significantly reducing the strain on your machine and enhancing the speed of your work.

Specifications

Machine Operating Weight:
4-10 tonnes

Attachment Weight:
320 kg

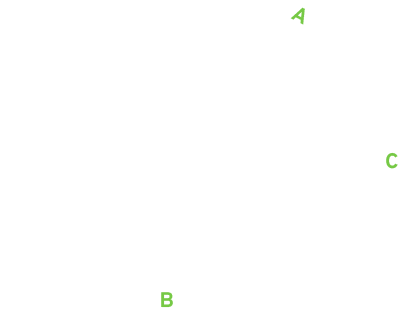

Opening (A):
450 ± 30 mm

Length (B):
1170 mm

Height (C):
740 mm

Width:
310 mm

Max Crushing Force:
83 tonnes

Max Shear Force:
126 tonnes

Working Pressure:
230 bar

Machine Operating Weight:
10-18 tonnes

Attachment Weight:
900 kg

Opening (A):
700 ± 30 mm

Length (B):
1675 mm

Height (C):
1100 mm

Width:
590 mm

Max Crushing Force:
105 tonnes

Max Shear Force:
165 tonnes

Working Pressure:
280 bar
