Screening Grapple

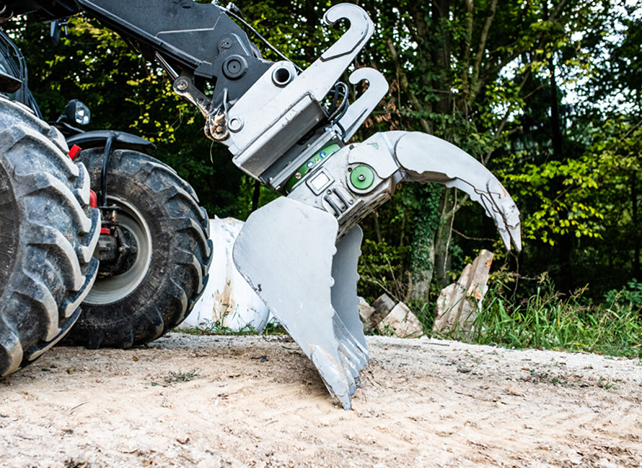

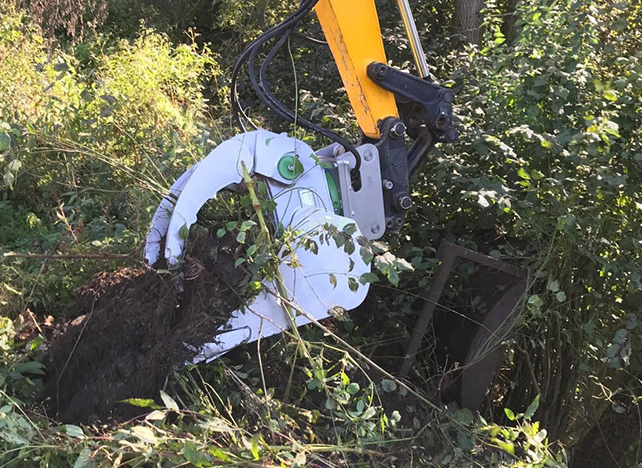

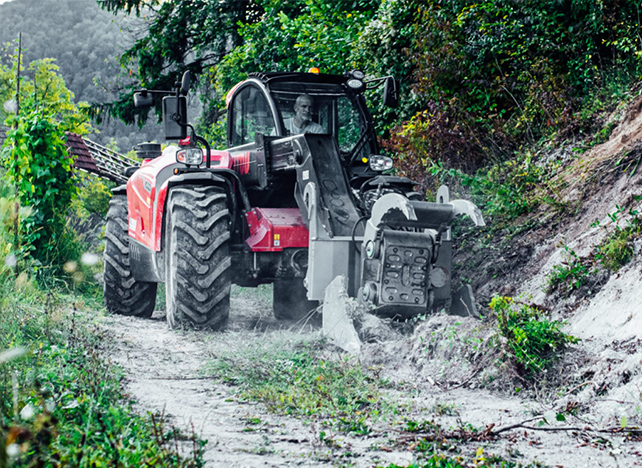

The Screening Grapple excels in land preparation and clearing, utilizing its unique A-synchronous gripping technology for unmatched control and precision. This feature allows each jaw to move independently, ensuring a secure grasp on uneven loads and surfaces. Reinforced for endurance with wear-resistant steel, it's perfect for tasks such as leveling the ground, clearing debris, and managing overgrowth. Confidence in its performance is assured with a comprehensive 3-year warranty.

The Most Reliable Grip with the Screening Grapple

Tool functions

Smart Modular Concept

The "Screening Grapple" can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. Our smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

More about Modular Concept

Specifications

Machine Operating Weight:
3-6 t

Max opening (A):
950 mm / 37.40 in

Width (B):
850 mm / 33.46 in

Closing force:
16 kN / 3597 lbf

Arms Weight:
196 kg / 432 lbs

Total Grapple weight:*

371 kg / 818 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
5-9 t

Max opening (A):
1100 mm / 34.31 in

Width (B):
1000 mm / 39.37 in

Closing force:
29 kN / 6519 lbf

Arms Weight:
249 kg / 549 lbs

Total Grapple weight:*
484 kg / 1067 lbs

*Total Grapple Weight value does not include the connection plate.

Machine Operating Weight:
8-14 t

Max opening (A):
1250 mm / 49.21 in

Width (B):
1150 mm / 45.28 in

Closing force:
31 kN / 6969 lbf

Arms Weight:
315 kg / 694 lbs

Total Grapple weight:*
575 kg / 1268 lbs

*Total Grapple Weight value does not include the connection plate.
