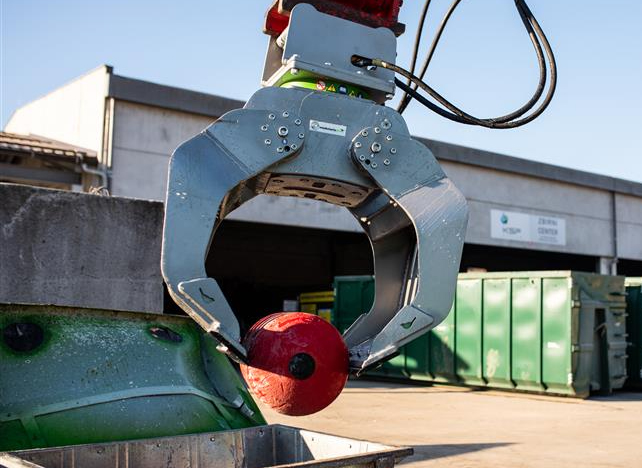

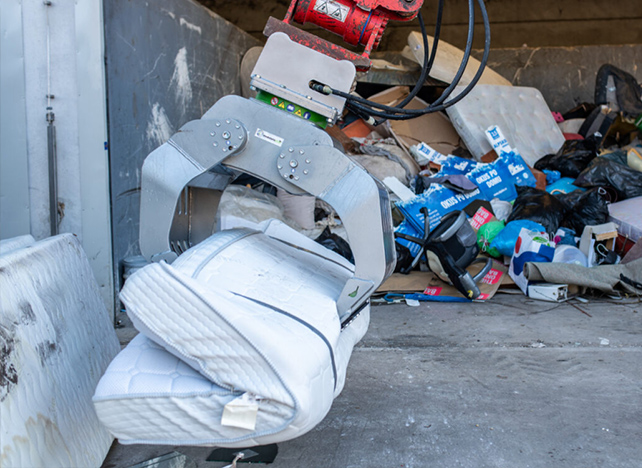

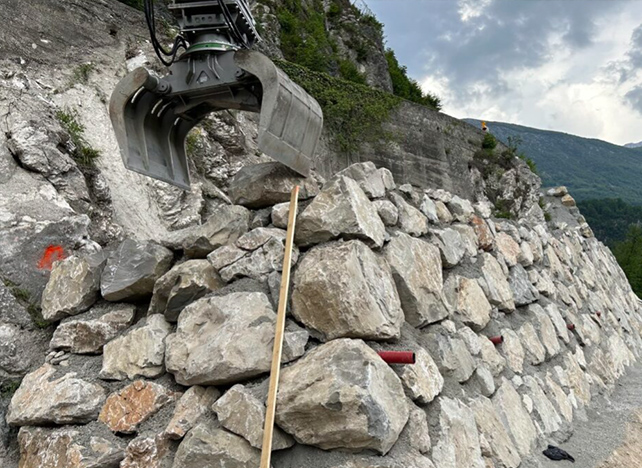

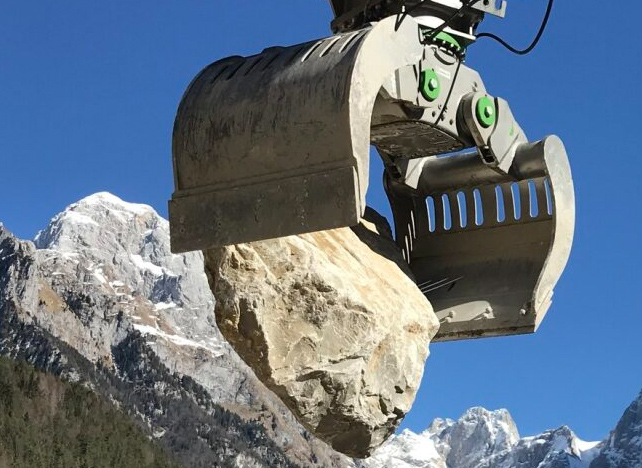

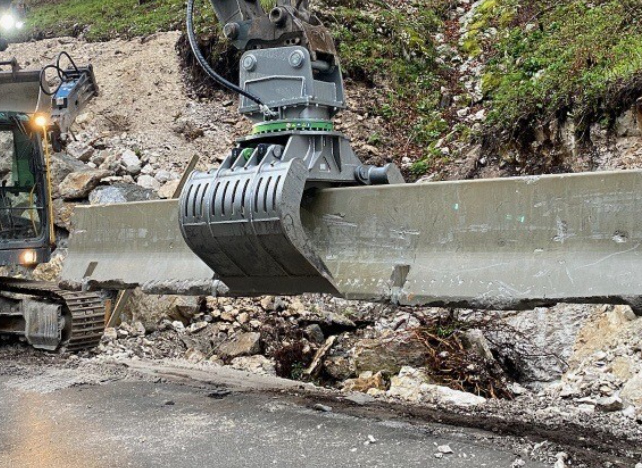

The Sorting Grapple (Standard) is an exceptional tool for a diverse range of tasks including material sorting, recycling, demolition, and stone handling. It excels in site clearance and waste management, making it indispensable for efficient operations. Featuring A-synchronous gripping technology, it ensures safe and easy operation under any conditions. The fixed gripping jaws, enhanced by the A-synchronous movement, provide a strong and reliable grip, making it the ideal choice for those seeking a straightforward and effective solution. Constructed from high-quality, durable steel and backed by a 3-year warranty, the Standard Sorting Grapple is the perfect tool for professionals in need of a dependable and robust helper.
Specifications
Machine Operating Weight:
5-9 t
Volume:
215 l / 0,28 cy
Max opening:
1533 mm / 60.35 in

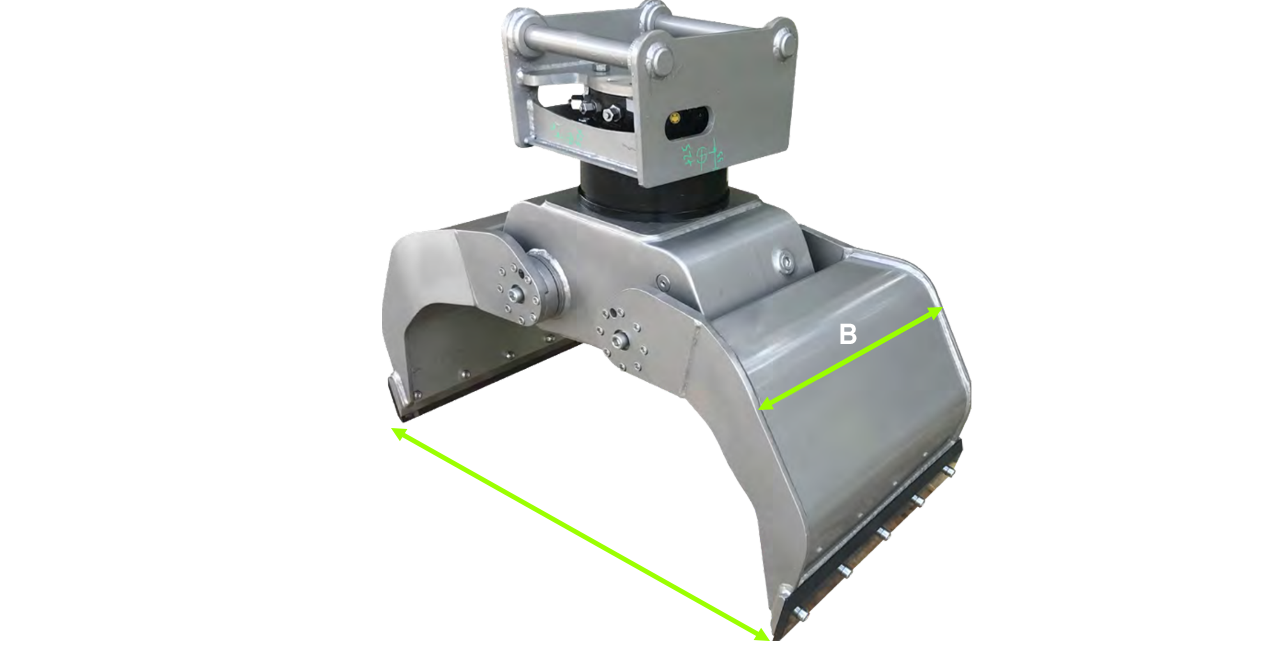

Width (A):
650 mm / 25.59 in
Height:*
550 mm / 21.65 in
Closing force:
29 kN / 6519 lbf
Arms Weight:
150 kg / 331 lbs
Total Grapple weight:*
360 kg / 794 lbs
*Total Grapple Weight and Height values do not include the connection plate.
