Sorting Grapple

Featuring A-synchronous gripping technology and a secure, enclosed drive, the Sorting Grapple offers safe, easy handling of materials in any condition. Made with top-grade, durable steel, it excels in demanding environments, ideal for clearing, sorting, recycling, and demolition tasks. Its powerful grip and lightweight design ensure unmatched efficiency. With a 3-year warranty, it's your reliable solution for advanced handling and demolition projects, perfectly tailored for efficient waste management and construction site cleanup.

The Most Reliable Grip with the Sorting Grapple

Tool functions

Smart Modular Concept

The Sorting Grapple can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. Our smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

More about Modular Concept

Specifications

Machine Operating Weight:
3-6 t

Volume:
170 l / 0,22 cy

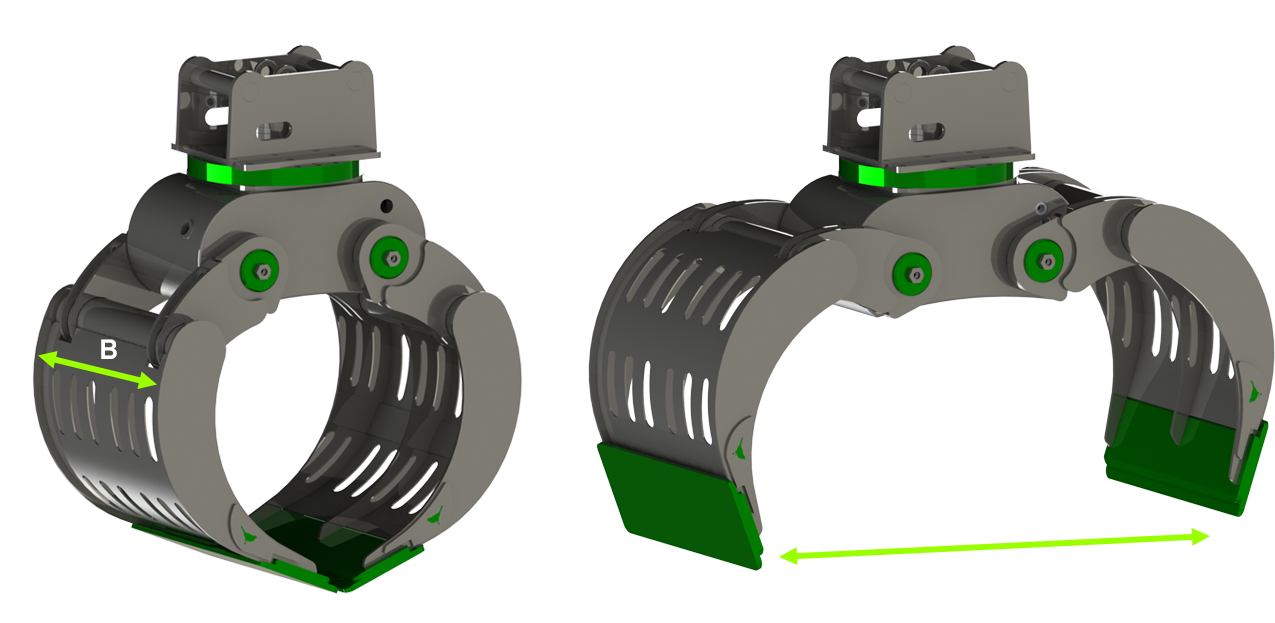

Max opening (A):
1150 mm / 45.28 in

Width (B):
550 mm / 21.65 in

Height:*
750 mm / 29.53 in

Closing force:
16 kN / 3597 lbf

Arms Weight:
138 kg / 304 lbs

Total Grapple weight:*

313 kg / 690 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
5-9 t

Volume:
215 l / 0,28 cy

Max opening (A):
1400 mm / 55.12 in

Width (B):
650 mm / 25.59 in

Height:
880 mm / 34.65 in

Closing force:
29 kN / 6519 lbf

Arms Weight:
240 kg / 529 lbs

Total Grapple weight*:
475 kg / 1047 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
8-14 t

Volume:
390 l / 0.51 cy

Max opening (A):
1800 mm / 70.87 in

Width (B):
750 mm / 29.53 in

Height:*
1015 mm / 39.96 in

Closing force:
31 kN / 6969 lbf

Arms Weight:
350 kg / 772 lbs

Total Grapple weight:*
610 kg / 1345 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
10-15 t

Volume:
630 l / 0.82 cy

Max opening (A):
2000 mm / 78.74 in

Width (B):
800 mm / 31.50 in

Height:*
1260 mm / 49.61 in

Closing force:
36 kN / 8093 lbf

Arms Weight:
430 kg / 948 lbs

Total Grapple weight:*
775 kg / 1709 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
15-20 t

Volume:
700 l / 0.92 cy

Max opening (A):
2100 mm / 82.68 in

Width (B):
900 mm / 35.43 in

Height:*
1370 mm / 53.94 in

Closing force:
46 kN / 10341 lbf

Arms Weight:
625 kg / 1378 lbs

Total Grapple weight:*
1100 kg / 2425 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
19-22 t

Volume:
950 l / 1.24 cy

Max opening (A):
2400 mm / 94.49 in

Width (B):
1000 mm / 39.37 in

Height:*
1560 mm / 61.42 in

Closing force:
55 kN / 12364 lbf

Arms Weight:
900 kg / 1984 lbs

Total Grapple weight:*
1600 kg / 3527 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
21-29 t

Volume:
950 l / 1.24 cy

Max opening (A):
2400 mm / 94.49 in

Width (B):
1100 mm / 43.31 in

Height:*
1560 mm / 61.42 in

Closing force:
75 kN / 16861 lbf

Arms Weight:
980 kg / 2161 lbs

Total Grapple weight:*
1760 kg / 3880 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
27-45 t

Volume:
1200 l / 1.57 cy

Max opening (A):
2700 mm / 106.30 in

Width (B):
1200 mm / 47.24 in

Height:*
1650 mm / 64.96 in

Closing force:
85 kN / 19109 lbf

Arms Weight:
1430 kg / 3153 lbs

Total Grapple weight:*
2830 kg / 6239 lbs

*Height & Total Grapple Weight values do not include the connection plate.
