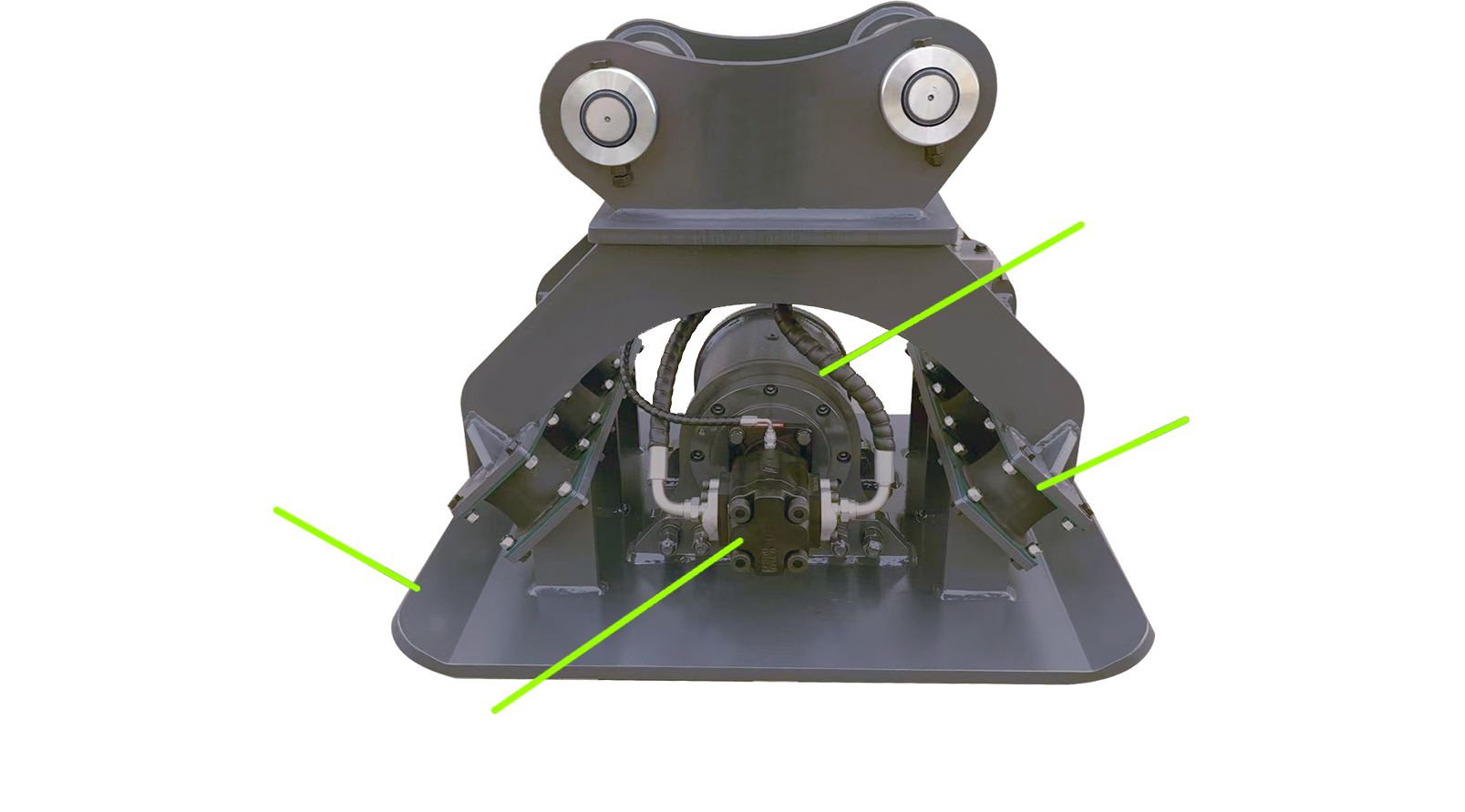

Discover the ultimate in compaction efficiency with the Modularis Excavator Vibratory Plate Compactor. Designed for optimal soil compaction across various applications including trench backfilling, ground leveling, embankment construction, and the installation and removal of poles, this tool delivers high-performance results. Safety is paramount with the Modularis Vibratory Plate Compactor. Attached to the excavator arm, it allows for operation from a safe distance, reducing the risk of accidents, especially near foundations, around obstacles, or on steep inclines where traditional rollers are unsuitable or unsafe.
The Modularis Vibratory Plate Compactor is enhanced with adjustable base sizes and the ability to rotate for precise positioning, boosting on-site productivity. Features like overload protection, improved force distribution, and low noise levels further enhance operational safety and efficiency. Choose the Modularis Drive Excavator Vibratory Plate Compactor for a robust and efficient solution to your compaction needs, ensuring performance and safety backed by a solid 1-year warranty.
Maximize Efficiency and Safety with the Modularis Excavator Vibro Plate
Specifications
Machine Operating Weight:
4-12 tonnes
Impact Force:
4 tonnes
Max Vibration:
2000 rmp
Weight:
300 kg
Working Pressure:
110-140 bar
Oil Flow:
45-75 l/min
Plate Dimension (Length*Width*Thickness):
900*500*25 mm
Total Height:
730 mm
Total Width:
550 mm
Machine Operating Weight:
4-12 tonnes
Impact Force:
6.5 tonnes
Max Vibration:
2000 rmp
Weight:
600 kg
Working Pressure:
150-170 bar
Oil Flow:
85-105 l/min
Plate Dimension (Length*Width*Thickness):
1160*700*28 mm
Total Height:
730 mm
Total Width:
550 mm
Machine Operating Weight:
18-27 tonnes
Impact Force:
15 tonnes
Max Vibration:
2000 rmp
Weight:
850 kg
Working Pressure:
160-180 bar
Oil Flow:
120-170 l/min
Plate Dimension (Length*Width*Thickness):
1350*900*30 mm
Total Height:
900 mm
Total Width:
700 mm
