Bulk Material Grapple

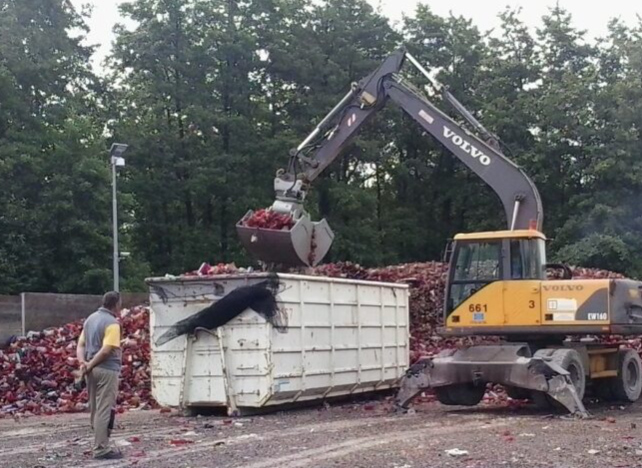

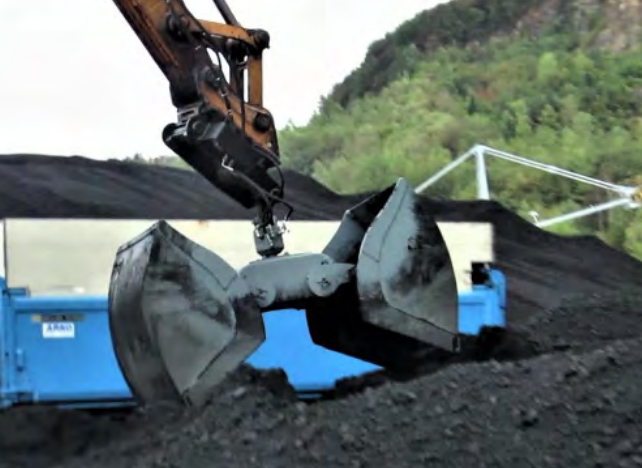

The Bulk Material Grapple is a top-tier tool designed for maximum safety and efficiency in handling earth, sand, coal, waste, and bulk materials. Its patented A-synchronous grip and durable, high-quality steel construction (Hardox/Sidur) ensure superior performance and resilience. Optimized for powerful gripping with a balanced, lightweight design, it's backed by a 3-year warranty, making it ideal for diverse material management tasks.

The Most Reliable Grip with the Bulk Material Grapple

Bulk Material Grapple - Free Link Version

Tool functions

Smart Modular Concept

The Bulk Material Grapple can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. Our smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

More about Modular Concept

Specifications

Machine Operating Weight:
3-6 t

Volume:
175 l / 0,23 cy

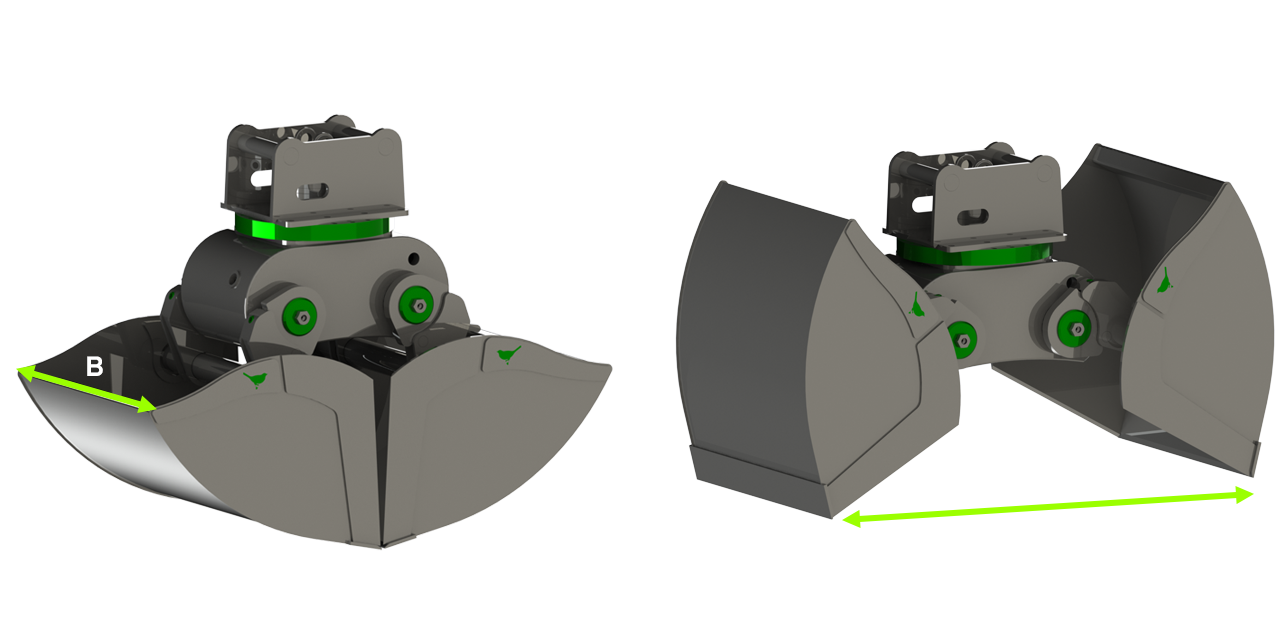

Width (B):
500 mm / 19.69 in

Max opening (A):
1150 mm / 45.28 in

Closing force:
16 kN / 3597 lbf

Arms Weight:
115 kg / 254 lbs

Total Grapple weight (Excavator):
290 kg / 639 lbs

Total Grapple weight (Crane/Material Handler):
265 kg / 584 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
3-6 t

Volume:
215 l / 0,28 cy

Width (B):
600 mm / 23.62 in

Max opening (A):
1150 mm / 45.28 in

Closing force:
16 kN / 3597 lbf

Arms Weight:
120 kg / 265 lbs

Total Grapple weight (Excavator):
295 kg / 650 lbs

Total Grapple weight (Crane/Material Handler):
270 kg / 595 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
3-6 t

Volume:
250 l / 0,33 cy

Width (B):
700 mm / 27.56 in

Max opening (A):
1150 mm / 45.28 in

Closing force:
16 kN / 3597 lbf

Arms Weight:
125 kg / 276 lbs

Total Grapple weight (Excavator):
300 kg / 661 lbs

Total Grapple weight (Crane/Material Handler):
275 kg / 606 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
5-9 t

Volume:
280 l / 0,37 cy

Width (B):
600 mm / 23.62 in

Max opening (A):
1350 mm / 53.15 in

Closing force:
29 kN / 6519 lbf

Arms Weight:
170 kg / 375 lbs

Total Grapple weight (Excavator):
405 kg / 893 lbs

Total Grapple weight (Crane/Material handler):
385 kg / 849 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
5-9 t

Volume:
330 l / 0,43 cy

Width (B):
700 mm / 27.56 in

Max opening (A):
1350 mm / 53.15 in

Closing force:
29 kN / 6519 lbf

Arms Weight:
177 kg / 390 lbs

Total Grapple weight (Excavator):
412 kg / 908 lbs

Total Grapple weight (Crane/Material handler):
392 kg / 864 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
5-9 t

Volume:
375 l / 0,49 cy

Width (B):
800 mm / 31.50 in

Max opening (A):
1350 mm / 53.15 in

Closing force:
29 kN / 6519 lbf

Arms Weight:
185 kg / 408 lbs

Total Grapple weight (Excavator):
420 kg / 926 lbs

Total Grapple weight (Crane/Material handler):
400 kg / 882 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
8-14 t

Volume:
365 l / 0,48 cy

Width (B):
600 mm / 23.62 in

Max opening (A):
1500 mm / 59.06 in

Closing force:
31 kN / 6969 lbf

Arms Weight:
200 kg / 441 lbs

Total Grapple weight (Excavator):
460 kg / 1014 lbs

Total Grapple weight (Crane/Material handler):
430 kg / 948 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
8-14 t

Volume:
425 l / 0,56 cy

Width (B):
700 mm / 27.56 in

Max opening (A):
1500 mm / 59.06 in

Closing force:
31 kN / 6969 lbf

Arms Weight:
210 kg / 463 lbs

Total Grapple weight (Excavator):
470 kg / 1036 lbs

Total Grapple weight (Crane/Material handler):
440 kg / 970 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
8-14 t

Volume:
490 l / 0,64 cy

Width (B):
800 mm / 31.50 in

Max opening (A):
1500 mm / 59.06 in

Closing force:
31 kN / 6969 lbf

Arms Weight:
220 kg / 485 lbs

Total Grapple weight (Excavator):
480 kg / 1058 lbs

Total Grapple weight (Crane/Material handler):
450 kg / 992 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
10-15 t

Volume:
490 l / 0,64 cy

Width (B):
700 mm / 27.56 in

Max opening (A):
1770 mm / 69.69 in

Closing force:
36 kN / 8093 lbf

Arms Weight:
350 kg / 772 lbs

Total Grapple weight (Excavator):
695 kg / 1532 lbs

Total Grapple weight (Crane/Material handler):
695 kg / 1532 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
10-15 t

Volume:
560 l / 0,73 cy

Width (B):
800 mm / 31.50 in

Max opening (A):
1770 mm / 69.69 in

Closing force:
36 kN / 8093 lbf

Arms Weight:
365 kg / 805 lbs

Total Grapple weight (Excavator):
710 kg / 1565 lbs

Total Grapple weight (Crane/Material handler):
710 kg / 1565 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
10-15 t

Volume:
630 l / 0,82 cy

Width (B):
900 mm / 35.43 in

Max opening (A):
1770 mm / 69.69 in

Closing force:
36 kN / 8093 lbf

Arms Weight:
380 kg / 838 lbs

Total Grapple weight (Excavator):
725 kg / 1598 lbs

Total Grapple weight (Crane/Material handler):
725 kg / 1598 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
10-15 t

Volume:
700 l / 0,92 cy

Width (B):
1000 mm / 39.37 in

Max opening (A):
1770 mm / 69.69 in

Closing force:
36 kN / 8093 lbf

Arms Weight:
395 kg / 871 lbs

Total Grapple weight (Excavator):
740 kg / 1631 lbs

Total Grapple weight (Crane/Material handler):
740 kg / 1631 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
15-20 t

Volume:
615 l / 0,80 cy

Width (B):
700 mm / 27.56 in

Max opening (A):
1950 mm / 76.77 in

Closing force:
46 kN / 10341 lbf

Arms Weight:
415 kg / 915 lbs

Total Grapple weight (Excavator):
890 kg / 1962 lbs

Total Grapple weight (Crane/Material handler):
890 kg / 1962 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
15-20 t

Volume:
700 l / 0,92 cy

Width (B):
800 mm / 31.50 in

Max opening (A):
1950 mm / 76.77 in

Closing force:
46 kN / 10341 lbf

Arms Weight:
430 kg / 948 lbs

Total Grapple weight (Excavator):
905 kg / 1995 lbs

Total Grapple weight (Crane/Material handler):
905 kg / 1995 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
15-20 t

Volume:
790 l / 1,03 cy

Width (B):
900 mm / 35.43 in

Max opening (A):
1950 mm / 76.77 in

Closing force:
46 kN / 10341 lbf

Arms Weight:
455 kg / 1003 lbs

Total Grapple weight (Excavator):
930 kg / 2050 lbs

Total Grapple weight (Crane/Material handler):
930 kg / 2050 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
15-20 t

Volume:
880 l / 1,15 cy

Width (B):
1000 mm / 39.37 in

Max opening (A):
1950 mm / 76.77 in

Closing force:
46 kN / 10341 lbf

Arms Weight:
480 kg / 1058 lbs

Total Grapple weight (Excavator):
955 kg / 2105 lbs

Total Grapple weight (Crane/Material handler):
955 kg / 2105 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
19-22 t

Volume:
1000 l / 1,31 cy

Width (B):
800 mm / 31.50 in

Max opening (A):
2500 mm / 98.43 in

Closing force:
55 kN / 12364 lbf

Arms Weight:
680 kg / 1499 lbs

Total Grapple weight (Excavator):
1380 kg / 3042 lbs

Total Grapple weight (Crane/Material handler):
1310 kg / 2888 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
19-22 t

Volume:
1300 l / 1,70 cy

Width (B):
1000 mm / 39.37 in

Max opening (A):
2500 mm / 98.43 in

Closing force:
55 kN / 12364 lbf

Arms Weight:
750 kg / 1653 lbs

Total Grapple weight (Excavator):
1450 kg / 3197 lbs

Total Grapple weight (Crane/Material handler):
1380 kg / 3042 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
19-22 t

Volume:
1560 l / 2,04 cy

Width (B):
1200 mm / 47.24 in

Max opening (A):
2500 mm / 98.43 in

Closing force:
55 kN / 12364 lbf

Arms Weight:
820 kg / 1808 lbs

Total Grapple weight (Excavator):
1520 kg / 3351 lbs

Total Grapple weight (Crane/Material handler):
1450 kg / 3197 lbs



*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
19-22 t

Volume:
1820 l / 2,38 cy

Width (B):
1400 mm / 55.12 in

Max opening (A):
2500 mm / 98.43 in

Closing force:
55 kN / 12364 lbf

Arms Weight:
890 kg / 1962 lbs

Total Grapple weight (Excavator):
1590 kg / 3505 lbs

Total Grapple weight (Crane/Material handler):
1520 kg / 3351 lbs



*Total Grapple Weight does not include the connection plate.
