Log Grapple

The Log Grapple stands out for its superior handling and manipulation of logs, combining cutting-edge safety with A-synchronous grip technology for secure and precise operation. Crafted from the most durable, wear-resistant steel, including Hardox and Sidur, it's built to perform in the most challenging environments. The tool's balanced design not only reduces weight but also enhances gripping power, making log tasks simpler and more efficient. A fully enclosed base drive further ensures operational simplicity and eliminates injury risks. With a 3-year warranty and eco-friendly design, this grapple promises reliability and reduced environmental impact for all timber handling needs.

The Most Reliable Grip with the Log Grapple

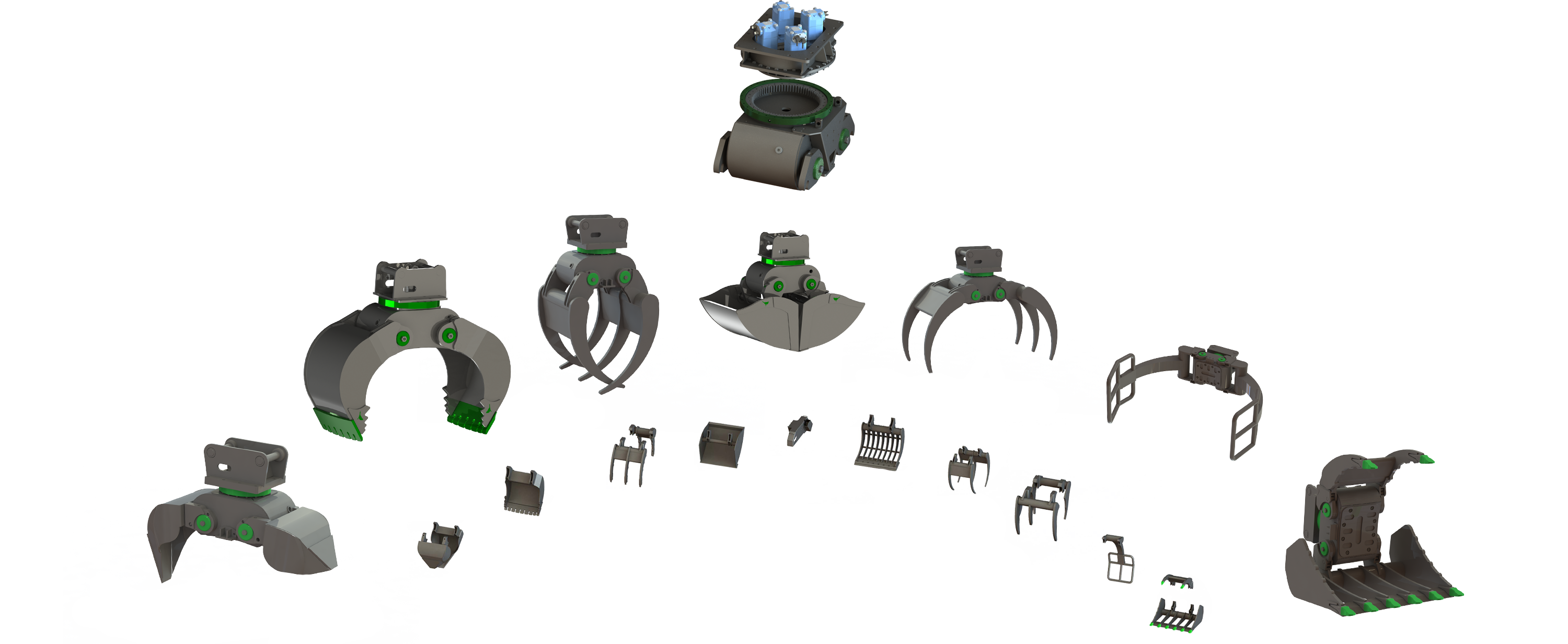

Smart Modular Concept

The Log Grapple can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. Our smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

More about Modular Concept

Specifications

Machine Operating Weight:
3-6 t

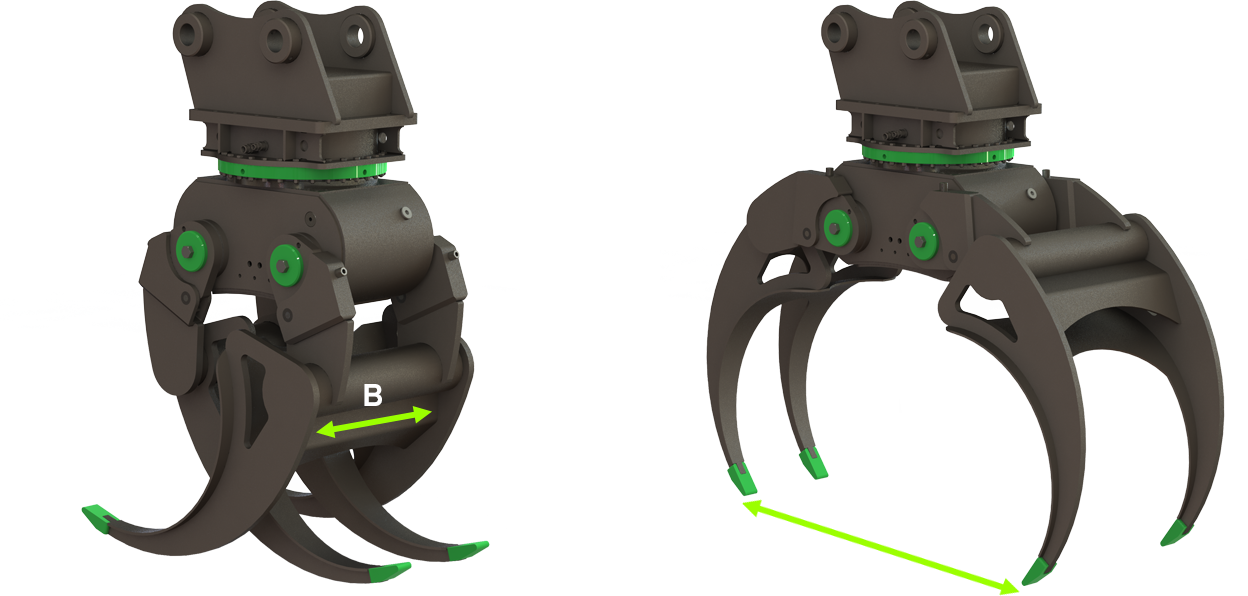

Max opening (A):
1300 mm / 51,18 in

Width (B):
500 mm / 19,69 in

Height:
800 mm / 31,50 in

Closing force:

16 kN / 3597 lbf

Arms Weight:
170 kg / 375 lbs

Total Grapple weight (Excavator version):*
345 kg / 761 lbs

Total Grapple weight (Crane/Material Handler version):*
320 kg / 705 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
5-9 t

Max opening (A):
1450 mm / 57,09 in

Width (B):
600 mm / 23,62 in

Height:
900 mm / 35,43 in

Closing force:
29 kN / 6519 lbf

Arms Weight:
230 kg / 507 lbs

Total Grapple weight (Excavator version):*
465 kg / 1025 lbs

Total Grapple weight (Crane/Material Handler version):*
445 kg / 981 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
8-14 t

Max opening (A):
1600 mm / 62,99 in

Width (B):
700 mm / 27,56 in

Height:
930 mm / 36,61 in

Closing force:
31 kN / 6969 lbf

Arms Weight:
280 kg / 617 lbs

Total Grapple weight (Excavator version):*
540 kg / 1190 lbs

Total Grapple weight (Crane/Material Handler version):*
510 kg / 1124 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
10-15 t

Max opening (A):
1650 mm / 64,96 in

Width (B):
750 mm / 29,53 in

Height:
1100 mm / 43,31 in

Closing force:
36 kN / 8093 lbf

Arms Weight:
360 kg / 794 lbs

Total Grapple weight (Excavator version):*
705 kg / 1554 lbs

Total Grapple weight (Crane/Material Handler version):*
705 kg / 1554 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
15-20 t

Max opening (A):
1700 mm / 66,93 in

Width (B):
800 mm / 31,50 in

Height:
1300 mm / 51,18 in

Closing force:
46 kN / 10341 lbf

Arms Weight:
504 kg / 1111 lbs

Total Grapple weight (Excavator version):*
979 kg / 2158 lbs

Total Grapple weight (Crane/Material Handler version):*
979 kg / 2158 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
19-22 t

Max opening (A):
1800 mm / 70,87 in

Width (B):
900 mm / 35,43 in

Height:
1500 mm / 59,06 in

Closing force:
55 kN / 12364 lbf

Arms Weight:
620 kg / 1367 lbs

Total Grapple weight (Excavator version):*
1320 kg / 2910 lbs

Total Grapple weight (Crane/Material Handler version):*
1250 kg / 2756 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
21-29 t

Max opening (A):
1900 mm / 74,80 in

Width (B):
950 mm / 37,40 in

Height:
1500 mm / 59,06 in

Closing force:
75 kN / 16861 lbf

Arms Weight:
690 kg / 1521 lbs

Total Grapple weight (Excavator version):*
1470 kg / 3241 lbs

Total Grapple weight (Crane/Material Handler version):*
1400 kg / 3086 lbs

*Height & Total Grapple Weight values do not include the connection plate.
