Three Finger Grapple

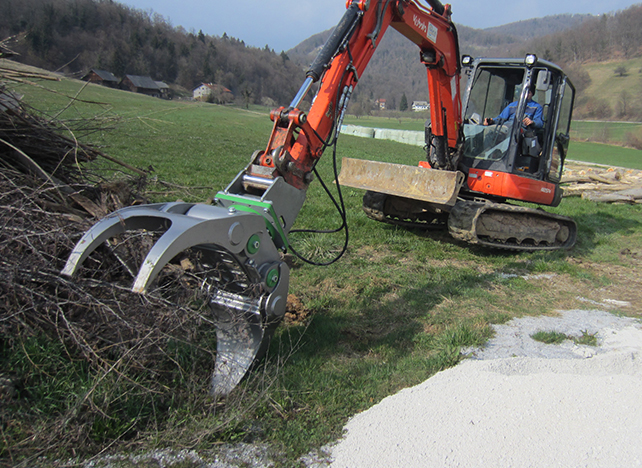

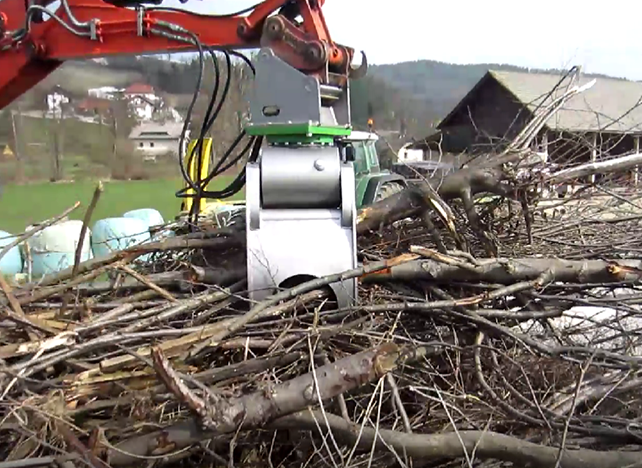

The Tree Finger Grapple, featuring A-synchronous grip technology and constructed from wear-resistant steel like Hardox, redefines timber handling with its precision and durability. This tool's distinctive tree finger design amplifies its gripping capabilities while minimizing its weight, streamlining log-related operations. Its safety is further enhanced by a fully enclosed base drive, reducing injury risks. Complementing its superior performance is an eco-conscious design, backed by a 3-year warranty. Beyond timber management, this grapple also excels in preparing soil for tree planting, cylindrical load handling, waste sorting and recycling.

The Most Reliable Grip with the Three Finger Grapple

Tool functions

Smart Modular Concept

The Three Finger Grapple can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. Our smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

More about Modular Concept

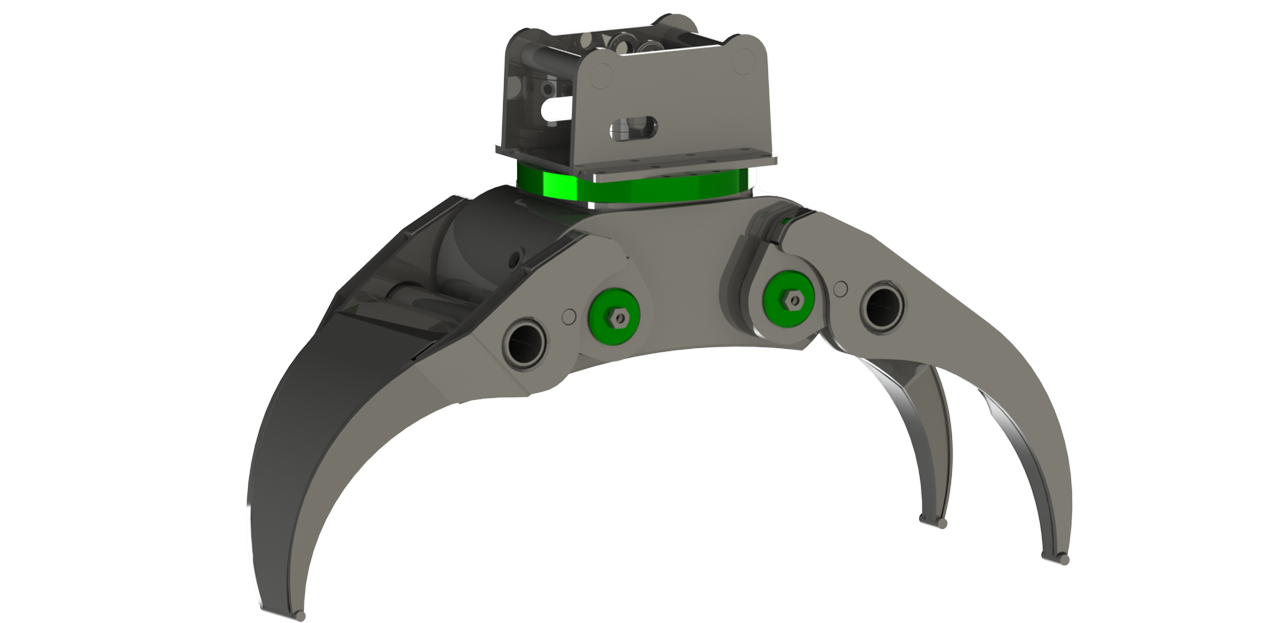

Specifications

Machine Operating Weight:
3-6 t

Min Diameter:
85 mm / 3,35 in

Max opening (A):
1300 mm / 51,18 in

Width (B):
280 mm / 11,02 in

Height:*
800 mm / 31,50 in

Closing force:

16 kN / 3597 lbf

Arms Weight:
120 kg / 265 lbs

Total Grapple weight:*

190 kg / 419 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
5-9 t

Min Diameter:
120 mm / 4,72 in

Max opening (A):
1500 mm / 59,06 in

Width (B):
320 mm / 12,60 in

Height:*
900 mm / 35,43 in

Closing force:
29 kN / 6519 lbf

Arms Weight:
170 kg / 375 lbs

Total Grapple weight:*
405 kg / 893 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
8-14 t

Min Diameter:
150 mm / 5,91 in

Max opening (A):
1800 mm / 70,87 in

Width (B):
350 mm / 13,78 in

Height:*
930 mm / 36,61 in

Closing force:
31 kN / 6969 lbf

Arms Weight:
235 kg / 518 lbs

Total Grapple weight:*
495 kg / 1091 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
10-15 t

Min Diameter:
170 mm / 6,69 in

Max opening (A):
2000 mm / 78,74 in

Width (B):
400 mm / 15,75 in

Height:*
1100 mm / 43,31 in

Closing force:
36 kN / 8093 lbf

Arms Weight:
324 kg / 714 lbs

Total Grapple weight:*
670 kg / 1477 lbs

*Height & Total Grapple Weight values do not include the connection plate.

Machine Operating Weight:
15-20 t

Min Diameter:
200 mm / 7,87 in

Max opening (A):
2200 mm / 86,61 in

Width (B):
500 mm / 16,69 in

Height:*
1300 mm / 51,18 in

Closing force:
46 kN / 10341 lbf

Arms Weight:
504 kg / 1111 lbs

Total Grapple weight:*
980 kg / 2161 lbs

*Height & Total Grapple Weight values do not include the connection plate.
