Multipurpose Grapple ‘Alligator’

The Multipurpose Grapple "Alligator" revolutionizes tasks from root pulling and forest clearing to demolition and waste management. Equipped with our advanced A-synchronous grip technology, it ensures efficient and precise operation across various heavy-duty tasks. Ideal for managing timber, biomass, steel, and construction materials, it's also your go-to for cleaning overgrown lands and waterways. Original prong design ensures easy penetration and secure gripping of diverse materials. Designed for durability and ease of use, the Grapple "Alligator" boasts a lightweight design and a 3-year warranty.

The Most Reliable Grip with the Grapple "Alligator"

Tool functions

Smart Modular Concept

Grapple "Alligator" can be easily upgraded. Increase the functionality of your equipment with more than 100 additional functions. Our smart modular concept ensures your machine is always ready for different tasks and optimizes your performance with seamless upgrades.

More about Modular Concept

Specifications

Machine Operating Weight:
3-6 t

Volume:
70 l / 0,09 cy

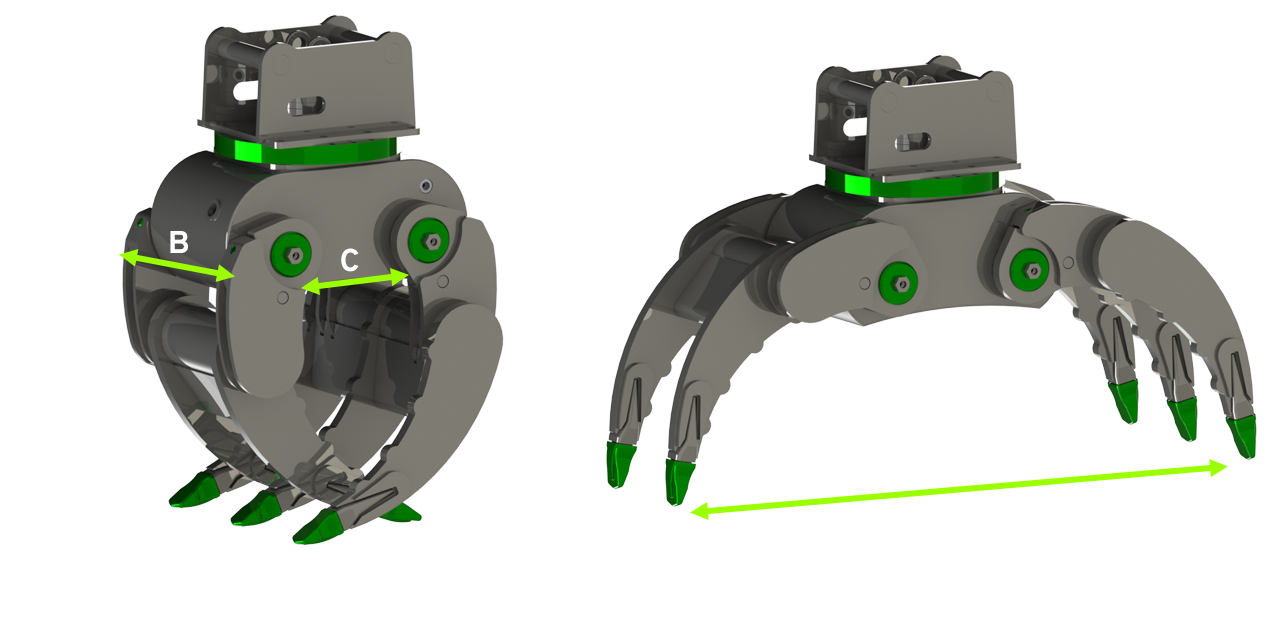

Max opening (A):
1160 mm / 45.67 in

Width (B):
460 mm / 18.11 in

Minimal Diameter (C):
150 mm / 5.91 in

Height:
750 mm / 29.53 in

Closing force:
16 kN / 3597 lbf

Arms Weight:
143 kg / 315 lbs

Total Grapple weight:*

318 kg / 701 lbs

*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
5-9 t

Volume:
150 l / 0,20 cy

Max opening (A):
1430 mm / 56.30 in

Width (B):
540 mm / 21.26 in

Minimal Diameter (C):
200 mm / 7.87 in

Height:
880 mm / 34.65 in

Closing force:
29 kN / 6519 lbf

Arms Weight:
192 kg / 423 lbs

Total Grapple weight:*
427 kg / 941 lbs

*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
8-14 t

Volume:
250 l / 0,33 cy

Max opening (A):
1680 mm / 66.14 in

Width (B):
540 mm / 21.26 in

Minimal Diameter (C):
300 mm / 11.81 in

Height:
1015 mm / 39.96 in

Closing force:
31 kN / 6969 lbf

Arms Weight:
242 kg / 534 lbs

Total Grapple weight:*
502 kg / 1107 lbs

*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
10-15 t

Volume:
300 l / 0,39 cy

Max opening (A):
1850 mm / 72.83 in

Width (B):
600 mm / 23.62 in

Minimal Diameter (C):
300 mm / 11.81 in

Height:
1260 mm / 49.61 in

Closing force:
36 kN / 8093 lbf

Arms Weight:
360 kg / 794 lbs

Total Grapple weight:*
705 kg / 1554 lbs

*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
15-20 t

Volume:
420 l / 0,55 cy

Max opening (A):
2000 mm / 78.74 in

Width (B):
700 mm / 27.56 in

Minimal Diameter (C):
300 mm / 11.81 in

Height:
1370 mm / 53.94 in

Closing force:
46 kN / 10341 lbf

Arms Weight:
560 kg / 1235 lbs

Total Grapple weight:*
1035 kg / 2282 lbs

*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
19-22 t

Volume:
560 l / 0,73 cy

Max opening (A):
2400 mm / 94.49 in

Width (B):
900 mm / 35.43 in

Minimal Diameter (C):
360 mm / 14.17 in

Height:
1560 mm / 61.42 in

Closing force:
55 kN / 12364 lbf

Arms Weight:
765 kg / 1687 lbs

Total Grapple weight:*
1465 kg / 3230 lbs

*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
21-29 t

Volume:
760 l / 0,99 cy

Max opening (A):
2400 mm / 94.49 in

Width (B):
900 mm / 35.43 in

Minimal Diameter (C):
360 mm / 14.17 in

Height:
1560 mm / 61.42 in

Closing force:
65 kN / 14613 lbf

Arms Weight:
835 kg / 1841 lbs

Total Grapple weight:*
1615 kg / 3560 lbs

*Total Grapple Weight does not include the connection plate.

Machine Operating Weight:
27-45 t

Volume:
870 l / 1,14 cy

Max opening (A):
3000 mm / 118.11 in

Width (B):
1000 mm / 39.37 in

Minimal Diameter (C):
400 mm / 15.75 in

Height:
1650 mm / 64.96 in

Closing force:
125 kN / 28101 lbf

Arms Weight:
1100 kg / 2425 lbs

Total Grapple weight:*
2500 kg / 5512 lbs

*Total Grapple Weight does not include the connection plate.
